JCB - 2000H at 105°C, Bi-polar SMD Aluminum Electrolytic Capacitors

JCB – 2000H at 105°C, Bi-polar SMD Aluminum Electrolytic Capacitors

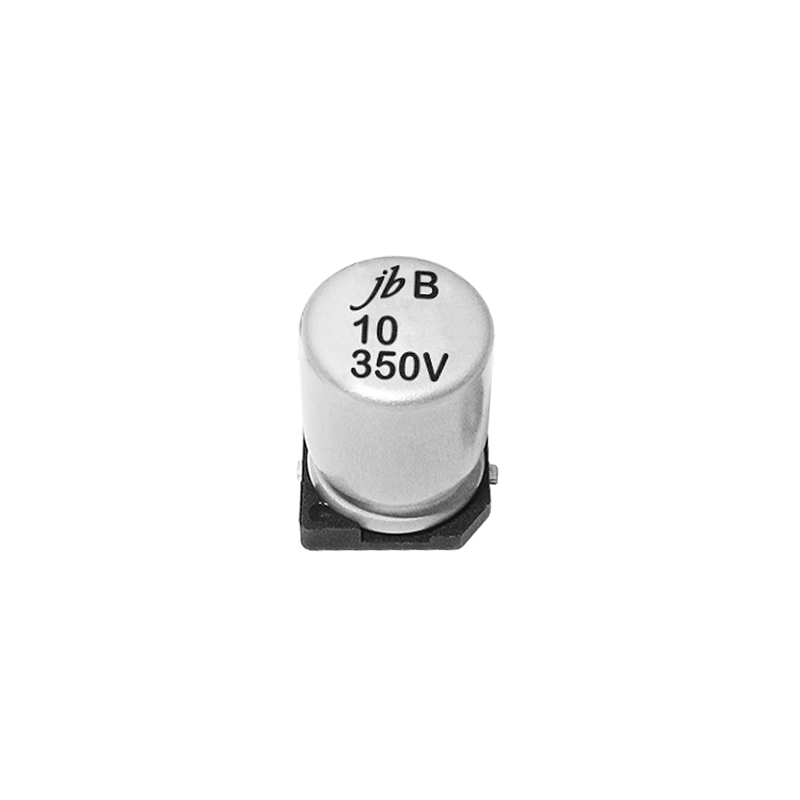

The JCB series from jb Capacitors features bi-polar SMD aluminum electrolytic capacitors engineered for non-polarized circuits. With a 2000-hour load life at +105°C, these capacitors offer excellent durability, solvent-proof construction (within 2 minutes), and a wide operating temperature range from –55°C to +105°C. Designed for applications requiring stable performance without polarity constraints, the JCB series combines high reliability, compact size, and compliance with RoHS standards.

Features

+105℃ long life, 2,000 hours
Bi-polar design for non-polarized circuits
Solvent-proof construction (within 2 minutes)
Wide temperature range: –55℃ ~ +105℃
Rated voltage: 6.3V ~ 50V.DC
Capacitance tolerance: ±20% at 120Hz, 20℃
Leakage current: 0.03CV + 6μA max (after 2 minutes)

Operating Temperature	-55°C~ +105°C
Voltage Range	6.3V ~ 50V.DC
Capacitance Range	0.1 ~ 47μF
Capacitance Tolerance	±20% at 120Hz, 20°C
Leakage Current	Leakage current≤ 0.05CV or 10μA, whichever is greater (after 2 minutes application of rated voltage)

Operating Temperature

-55°C~ +105°C

Voltage Range

6.3V ~ 50V.DC

Capacitance Range

0.1 ~ 47μF

Capacitance Tolerance

±20% at 120Hz, 20°C

Leakage Current

Leakage current≤ 0.05CV or 10μA, whichever is greater (after 2 minutes application of rated voltage)
