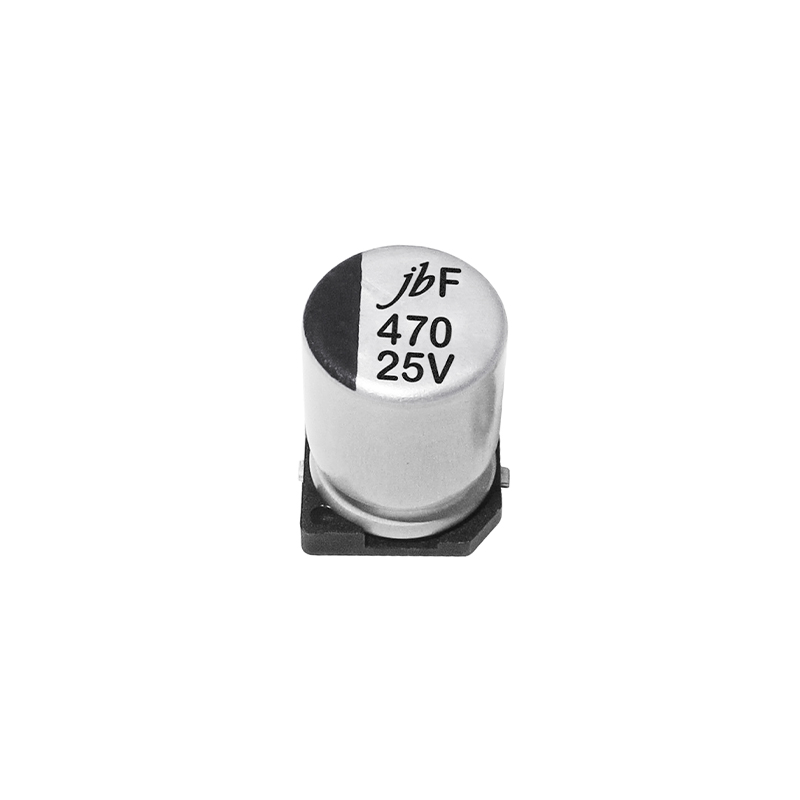

JCF – 2000H to 5000H at 105°C, Super Low Impedance SMD Aluminum Electrolytic Capacitors
The JCF series offers super low impedance performance, operating within a wide temperature range of -55°C to +105°C. With a rated lifespan of 2000 to 5000 hours at 105°C, these SMD aluminum electrolytic capacitors are ideal for power supply filtering and high-frequency circuit applications. Designed for compact surface-mount designs, the JCF series ensures reliable operation under demanding conditions.
Description
Features
- Endurance: 105℃ 2000~5000H
- Extra Low Impedance
- Designed for reflow soldering
- Designed for surface mounting on high-density PCB
Specifications
Specifications
| Operating Temperature | -55°C~ +105°C |
|---|---|
| Voltage Range | 6.3V ~ 100V.DC |
| Capacitance Range | 3.3 ~ 6800μF |
| Capacitance Tolerance | ±20% at 120Hz, 20°C |
| Leakage Current | For Ø4~Ø10, After 2 minutes’ application of rated voltage, leakage current is not more than 0.01CV or 3μA, whichever is greater. For Ø12.5~Ø16, After 1 minutes’ application of rated voltage, leakage current is not more than 0.03CV or 4μA, whichever is greater. |
