JFG – Axial Metallized Polyester & Polypropylene Film Capacitors
The JFG Series by jb Capacitors includes Axial Metallized Polyester and Polypropylene Film Capacitors, available in capacitance values from 0.033μF to 68μF with voltage ratings of 250V–630V DC. With excellent self-healing properties, low dielectric absorption, and operation from -55°C to +100°C, these capacitors are suitable for audio crossover, DC filtering, AC pulse circuits, and general electronic applications. Sub-series include JFGA, JFGB, JFGC, and JFGD, each tailored for specific structure and shape preferences.
Description
Features
- JFG is constructed with metallized polyester film or metallized polypropylene film as medium and electricode, wrapped and sealed with flame-retardant plastic and epoxy resin.
- With high reliability, high temperature-resistance, small volume, large capacity and good self-healing property.
- Mainly used in instruments and the DC &AC circuit of the household equipment and the fractional frequency circuit of acoustics system.
Specifications
Specifications

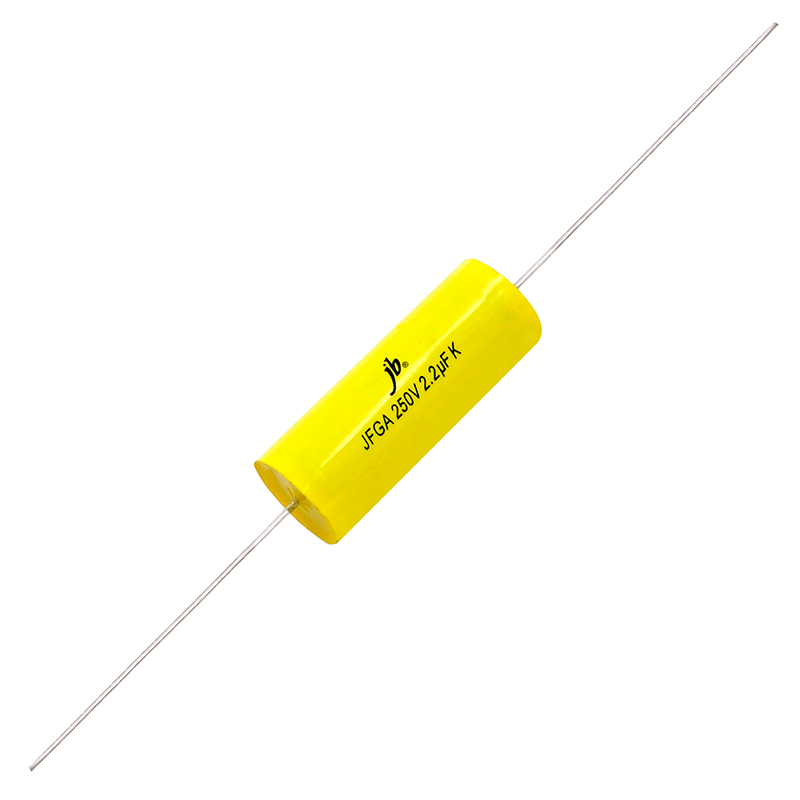

| JFGA Axial Metallized Polyester Film Capacitor (CYCLOIDAL) | |||
|---|---|---|---|
| Operating Temperature | -40°C~ +105°C | ||
| Rated Voltage | 100V, 250V, 400V, 630V.DC | ||
| Withstand Voltage | 1.6UR 2s (1.5UR 5s) | ||
| Capacitance Range | 0.033 ~ 68μF | ||
| Capacitance Tolerance | ±5%, ±10% | ||
| JFGB Axial Metallized Polyester Film Capacitor (FLAT OVAL SHAPE) | |||
| Operating Temperature | -40°C~ +105°C | ||
| Rated Voltage | 100V, 250V, 400V, 630V.DC | ||
| Withstand Voltage | 1.6UR 2s (1.5UR 5s) | ||
| Capacitance Range | 0.01 ~ 68μF | ||
| Capacitance Tolerance | ±5%, ±10% | ||

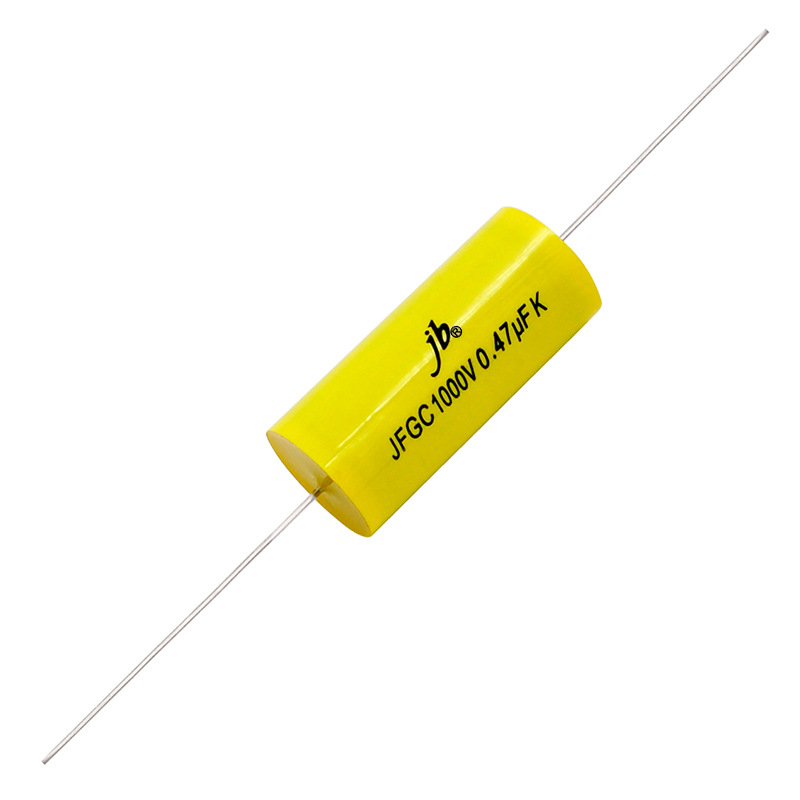

| JFGC Axial Metallized Polypropylene Film Capacitor (CYCLOIDAL) | |||
| Operating Temperature | -55°C~ +100°C | ||
| Rated Voltage | 250V, 400V, 630V, 1000V, 1250V.DC | ||
| Withstand Voltage | 1.7UR 2s (1.5UR 5s) | ||
| Capacitance Range | 0.047 ~ 56 μF | ||
| Capacitance Tolerance | ±5%, ±10% | ||
| JFGD Axial Metallized Polypropylene Film Capacitor (FLAT OVAL SHAPE) | |||
| Operating Temperature | -55°C~ +100°C | ||
| Rated Voltage | 250V, 400V, 630V, 1000V, 1250V.DC | ||
| Withstand Voltage | 1.7UR 2s (1.5UR 5s) | ||
| Capacitance Range | 0.022 ~ 47 μF | ||
| Capacitance Tolerance | ±5%, ±10% | ||
Drawing
Drawing

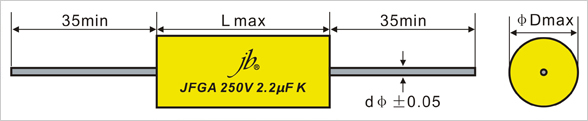

JFGA Axial Metallized Polyester Film Capacitor (CYCLOIDAL)

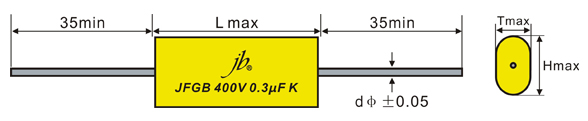

JFGB Axial Metallized Polyester Film Capacitor (FLAT OVAL SHAPE)

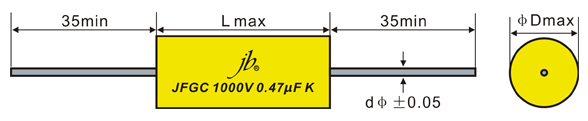

JFGC Axial Metallized Polypropylene Film Capacitor (CYCLOIDAL)

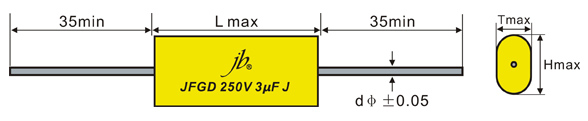

JFGD Axial Metallized Polypropylene Film Capacitor (FLAT OVAL SHAPE)
