JFJ – Mini Box Stacked Metallized Polyester Film Capacitors

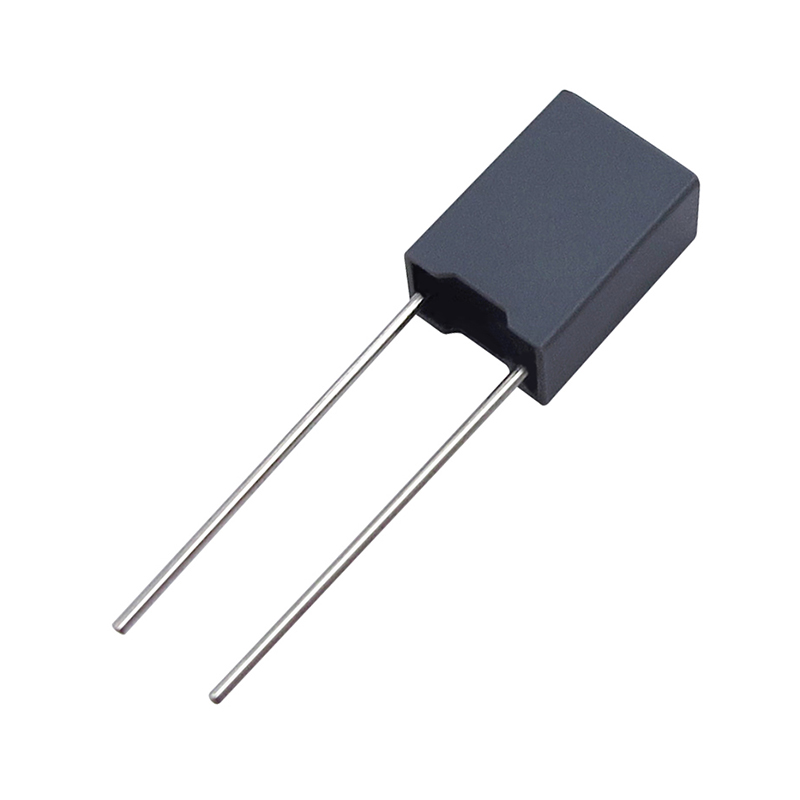

JFJ is a Mini Box Stacked Metallized Polyester Film Capacitor designed for compact, high-density circuits. It offers high dv/dt capability, non-inductive construction, and reliable EMI filtering. Encased in a flame-retardant plastic box with epoxy resin, JFJ delivers consistent electrical performance in limited board space.

Description

Features

  • High dv / dt ability and small size due to stacked construction
  • Non-inductive, Plastic case and epoxy resin
Specifications

Specifications

Reference Standard GB7332 (IEC 60384-2)
Climatic Category 55/ 100/ 56
Rated Temperature 85°C
Operating Temperature Range -55°C~ +105°C (+85°C to +105°C:decreasing factor 1.25% per for °C VR (DC))
Rated Voltage 50V/63V, 100V, 250V, 400V, 500V, 630V
Capacitance Range 0.001 ~ 1.0uF
Capacitance Tolerance ±5%(J), ±10%(K), ±20%(M)
Voltage Proof Type A: 1.6UR (5s) ; Type B: 1.4UR (5s)
Drawing

Drawing

JFJ - Mini Box Stacked Metallized Polyester Film Capacitors

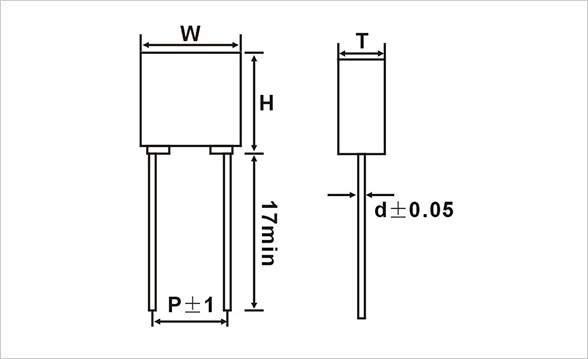

JFJ - Mini Box Stacked Metallized Polyester Film Capacitor Drawing
