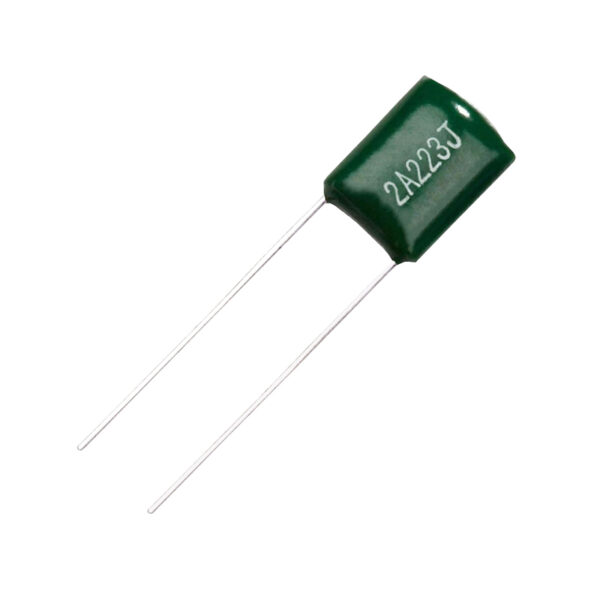

JFLM – Mini Size Metallized Polypropylene Film Capacitors
The JFLM series mini metallized polypropylene film capacitors are designed for compact electronic circuits requiring high-frequency performance and moisture resistance. With low dissipation factor and reliable self-healing properties, they ensure stable performance in demanding environments. Suitable for S-curve compensating and energy storage circuits.
Description
Features
- Non-inductive, epoxy dip coated, high moisture resistance.
- Dissipation factor is normally low and it is stable against high frequency and change of temperature.
- Recommended for high-frequency circuits like s-curve compensating circuit.
- High reliability because of its excellent Self-Healing performance.
Specifications
Specifications
| Operating Temperature | -40°C~ +85°C |
|---|---|
| Rated Voltage | 100V(2A), 250V(2E), 400V(2G), 630V(2J).1000V(3A) |
| Capacitance Range | 0.001 ~ 0.33μF |
| Capacitance Tolerance | ±5% |
| Insulation Resistance | UR>100V C≤0.33uF IR ≥25000MΩ,C>0.33uF IR ≥7500s UR<100V C≤0.33uF IR ≥12500MΩ,C>0.33uF IR ≥3750s |
| Dissipation Factor | ≤0.001 at1KHz (Typical 0.002 Max) |
Drawing
Drawing
JFLM - Mini Size Metallized Polypropylene Film Capacitors
