JFWT – X2 Met Polypropylene Film Capacitors – Temperature Humidity Bias (THB) Series
JFWT Series X2 Metallized Polypropylene Film Capacitors are designed for THB applications (85°C / 85%RH), ensuring stable performance in high humidity and temperature environments.
Certified by VDE, ENEC, and UL, they provide reliable EMI suppression for power lines. The capacitors feature a non-inductive construction, UL94V-0 flame-retardant case, and epoxy sealing for enhanced safety and durability.
Available with cut or long leads, in bulk or ammo tape packaging, with short lead times and competitive pricing. Ideal for home appliances, industrial equipment, and power supply circuits.
Description
Features
- Non-inductive, (UL940V-0) plastic case sealed with epoxy resin.
- High stability of capacitance under severe ambient condition, high temperature and high humidity.
- Class X2 safety capacitors for 310VAC.
- Provides interference suppression capacitor with VDE, ENEC and UL approvals.
- Short delivery, some items have stock available.
- High quality commitment, good prices support.
- Cut leads, Bulk, Ammo Tape Package,Long leads are available.
- Fast sales response for cross, quotation.
Specifications
Specifications
| Operating Temperature | -40°C~ +110°C |
|---|---|
| Voltage Rating | 310VAC |
| Safety Approvals | ENEC, VDE, UL,cUL. |
| Capacitance Range | 0.0047 ~ 10.0μF |
| Capacitance Tolerance | std ±10% (K) |
| Insulation Resistance | CR≤0.33μF, I.R≥15,000MΩ CR>0.33μF, I.R≥5,000S , (20℃，100V,1min) |
| Dissipation Factor | 0.0047μF≤CR≤0.47μF ≤0.1% (1KHz,20℃) 0.47μF≤CR≤1.0μF ≤0.2% (1KHz,20℃) 1.0μF≤CR≤10μF≤0.3% (1KHz,20℃) |
| Voltage Proof | 4.3UR DC /5s |
| Humidity Test Condition 85/85 | Temperature: 85°C ± 2°C; Humidity: 85% ± 2% Loading Voltage: 240Vac (50Hz/60Hz) Duration: 500 Hours |
| Capacitance Change 85/85 | ≤10% of initially measured value |
| Dissipation Factor 85/85 | ≤2.5% at 1KHz |

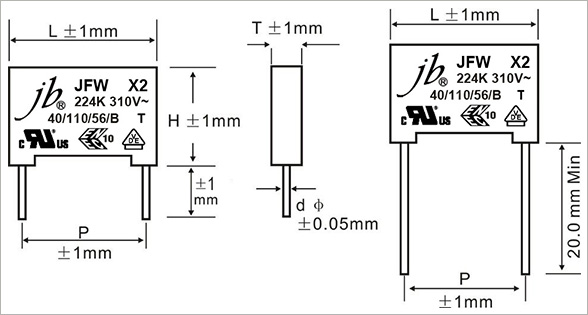

Drawing
Drawing
