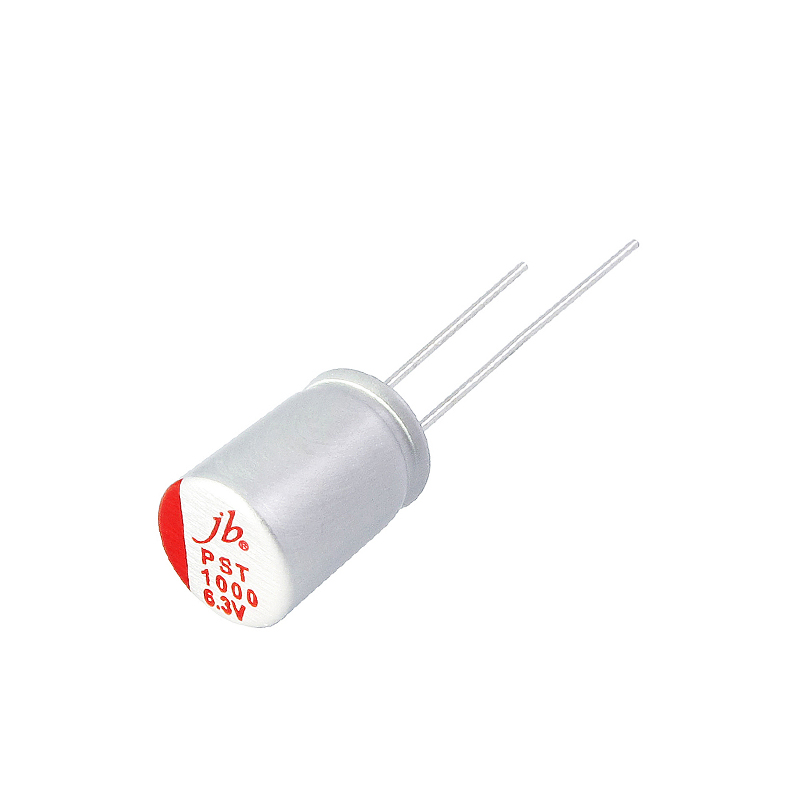

PST – 2000H at 125°C Low ESR Leadwire Polymer Aluminum Solid Electrolytic Capacitors
The PST series radial polymer aluminum solid electrolytic capacitors from jb Capacitors offer excellent performance for high-frequency circuits. With a load life of 2000 hours at 125°C, low ESR, and large permissible ripple current, these leadwire capacitors are designed to meet the demands of power supplies, telecom, and industrial electronics. Fully RoHS compliant and built for reliability in harsh environments.
Description
Features
- Standard Series. Load life of 2000 hours at 125°C.
- Large permissible ripple current
- Low ESR at high frequency range
- Comply with the RoHS directive.
Specifications
Specifications
| Operating Temperature | -55°C~ +125°C |
|---|---|
| Voltage Range | 2.5V ~25V.DC |
| Capacitance Range | 100~ 2200μF |
| Capacitance Tolerance | ±20% at 120Hz, 20°C |
| Leakage Current(+20℃, max) | ≤0.2CV (μA, after 2 minutes) |

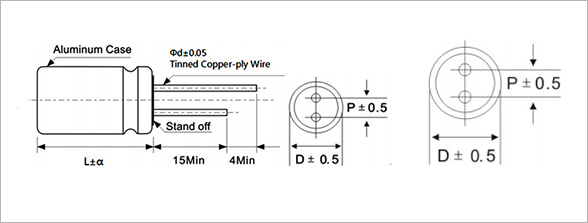

Drawing
Drawing
