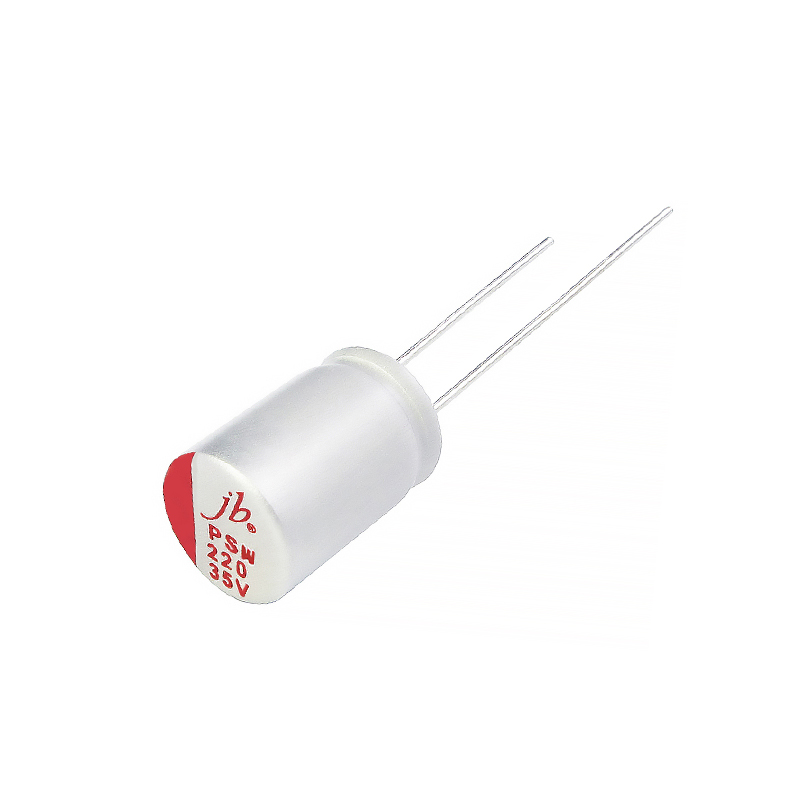

PSW – 3000H at 105°C Standard Low ESR Radial Polymer Aluminum Solid Electrolytic Capacitors

jb Capacitors’ PSW series features standard low ESR radial polymer aluminum solid electrolytic capacitors, offering reliable performance and extended 3000-hour endurance at 105°C. Designed to handle high ripple current, these capacitors are ideal for power supplies, filtering circuits, and other energy-demanding applications. Their stable characteristics and long life make them a cost-effective choice for engineers prioritizing efficiency and durability.

Description

Features

  • Low ESR Series
  • Load Life of 3000 Hours, 105°C
  • High Ripple Current
Specifications

Specifications

Category Temperature Range (°C) -55°C ~ +105°C
Rated Voltage Range (V) 2.5V ~ 25VDC
Capacitance Tolerance (+20°C, 120Hz) ±20%
Leakage Current 0.2CV or 500 μA, whichever is greater. Less than or equal to the specified value. Measured after 2 minutes application of rated Voltage at 20°C.
Dissipation Factor (20°C, 120Hz) tanδ (Max.): 0.08
Low Temperature Characteristics (Max. Impedance Ratio)
  • Z(-25°C)/Z(+20°C) ≤ 1.25
  • Z(-55°C)/Z(+20°C) ≤ 1.25 (100kHz)
Endurance The specifications listed below shall be satisfied when the capacitors are restored to 20°C after application of rated voltage for 3000 hours at 105°C:

  • Appearance: No significant damage
  • Capacitance change: ±20% of the initial value
  • D.F.(tanδ): ≤ 150% of the specified value
  • ESR: ≤ 150% of the specified value
  • Leakage current: ≤ The specified value
Damp Heat (Steady State) The specifications listed below shall be satisfied when the capacitors are restored to 20°C after application of rated voltage for 1000 hours at 60°C, 90% ~ 95% RH:

  • Appearance: No significant damage
  • Capacitance change: ±20% of the initial value
  • D.F.(tanδ): ≤ 150% of the specified value
  • ESR: ≤ 150% of the specified value
  • Leakage current: ≤ The specified value
Surge Voltage Surge Voltage = Rated voltage x 1.15(V). The capacitors shall be subjected to 1000 cycles, each consisting of charge with the surge voltages specified at 105°C for 30 seconds through a protective resistor (Rc=1kΩ) and discharge for 5 minutes 30 seconds:

  • Appearance: No significant damage
  • Capacitance change: ±20% of the initial value
  • D.F.(tanδ): ≤ 150% of the specified value
  • ESR: ≤ 150% of the specified value
  • Leakage current: ≤ The specified value
Frequency Coefficient For Ripple Current
Frequency 120Hz~<1kHz 1kHz ≤ freq. < 10kHz 10kHz ≤ freq. < 100kHz 100kHz ≤ freq. ≤ 500kHz
Coefficient 0.05 0.3 0.7 1.0
