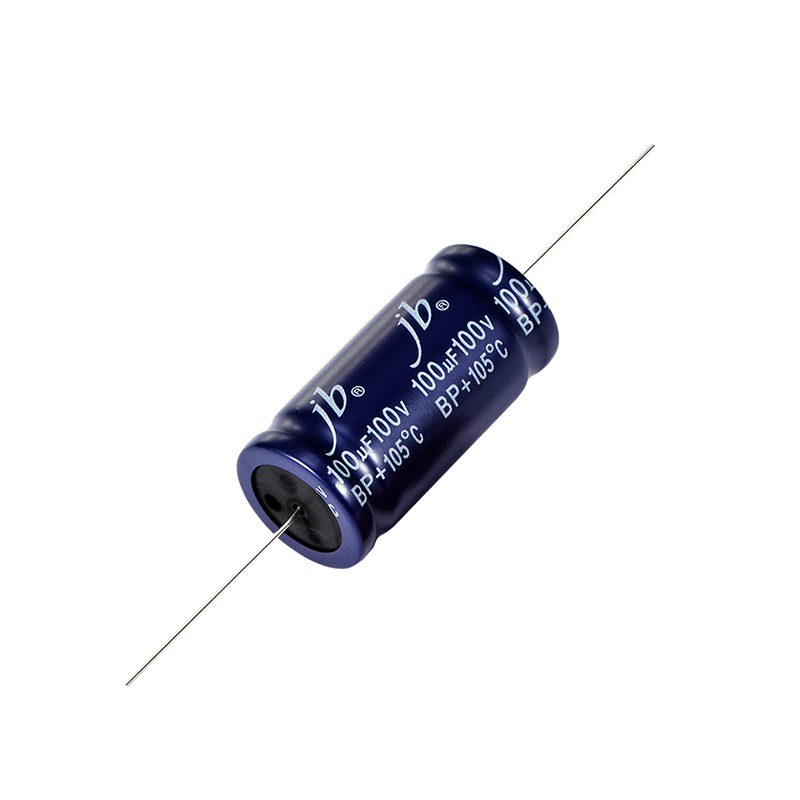

JAF – 1000H 105°C, DF at Max 10% BP Axial Aluminum Electrolytic Capacitors for Audio System
JAF Series Bi-Polar Axial Aluminum Electrolytic Capacitors are designed for audio applications that demand stable, distortion-free performance. Rated for 1000 hours at 105°C with a low 10% dissipation factor, these capacitors are ideal for speaker crossover networks and high-fidelity audio systems.
Engineered for 50V–100V operations, the JAF series ensures low leakage and high ripple current handling. This makes it an excellent choice for audio amplifiers, automotive audio circuits, and professional sound equipment.
Description
Features
- Bi-Polarized
- 105℃ 1000 hours
- Low Dissipation Factor MAX 10% at 120Hz
- Specially produced for Cross-Over Networks with high fidelity audio system
- High-quality crossover non-polar aluminum electrolytic capacitors
- Product mainly used: Audio Converters and Dividers (partials), Audio amp, Automotive Electronics Products, speaker and so on
Specifications
Specifications
| Items | Performance Characteristics |
|---|---|
| Operating Temperature Range (°C) | -40℃~+105℃ |
| Capacitance Tolerance | ±10% |
| Leakage Current (μA) | MAX. 0.03CV + 3μA After 5 minutes application of rated working voltage |
| MAX Dissipation Factor | MAX 10% at 120Hz |
Drawing
