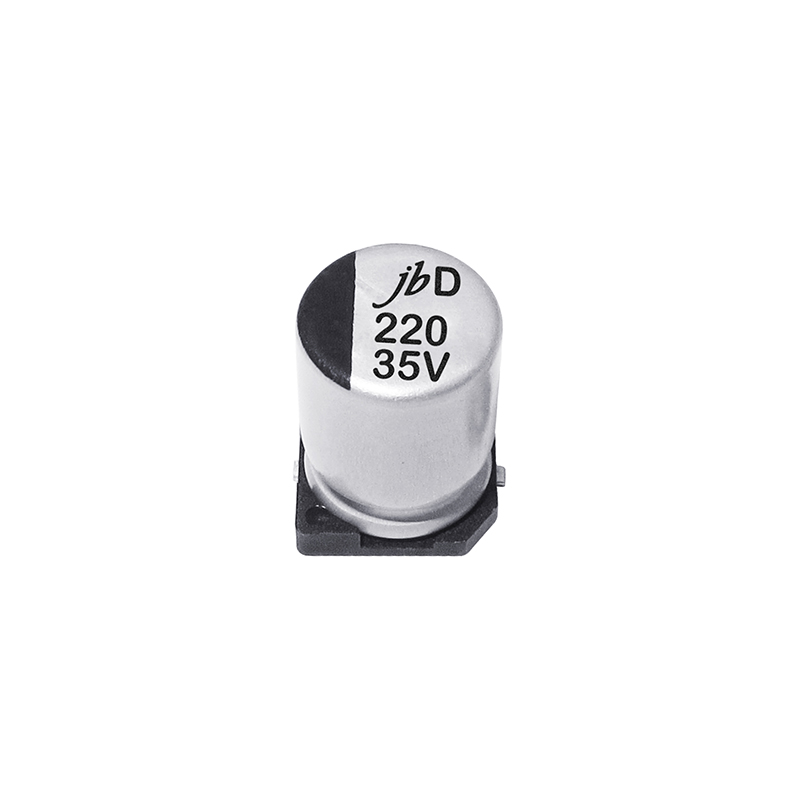

JCD – 2000H at 105°C, Low Impedance SMD Aluminum Electrolytic Capacitors

The JCD series from jb Capacitors features low impedance SMD aluminum electrolytic capacitors with a wide operating temperature range of -55°C to +105°C. Designed for compact, high-performance electronics, these capacitors offer a load life of 1000 to 2000 hours and comply with RoHS standards. Ideal for applications requiring stability and space efficiency.

Description

Features

  • Low impedance with temperature range -55 ~ +105°C.
  • Load life of 1000 ~ 2000 hours.
  • Comply with the RoHS directive.
Specifications

Specifications

Operating Temperature -55°C~ +105°C
Voltage Range 6.3V ~ 50V.DC
Capacitance Range 1 ~ 4700μF
Capacitance Tolerance ±20% at 120Hz, 20°C
Leakage Current Leakage current (Φ4~Φ10) ≤0.01CV or 3μA, whichever is greater (after 2 minutes application of rated voltage)Leakage current (Φ12.5~Φ16) ≤0.03CV or 4μA, whichever is greater (after 1 minutes application of rated voltage)
