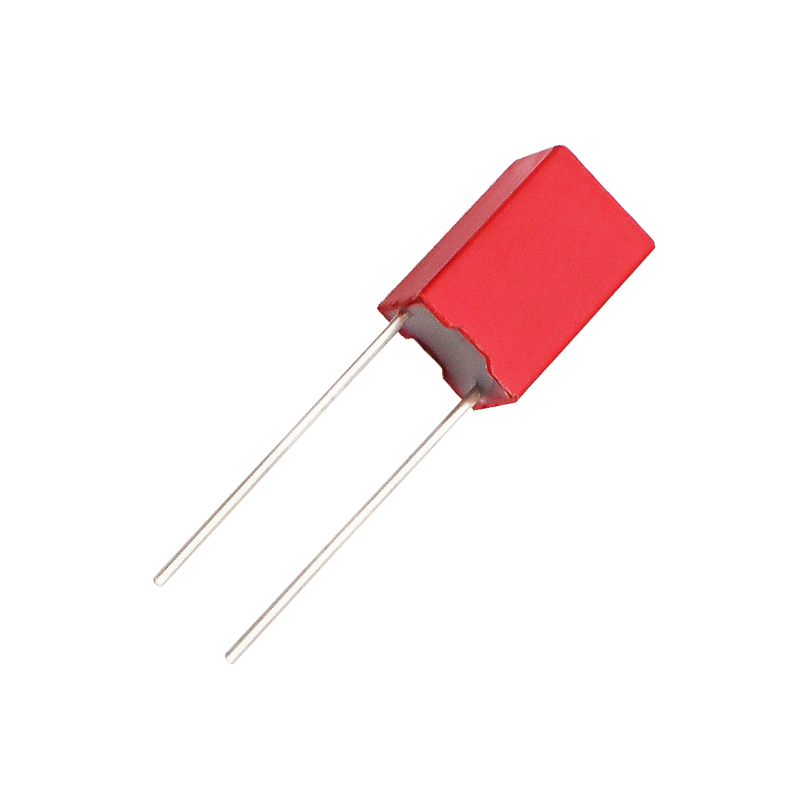

JFMM – Mini Box Metallized Polypropylene Film Capacitors

JFMM mini box metallized polypropylene film capacitors are engineered for compact electronic applications requiring high stability, low loss, and flame-retardant performance. With voltage ratings from 100V to 1000V and capacitance from 0.001μF to 2.2μF, they are ideal for EMI suppression, power supplies, and control circuits operating in harsh environments.

Description

Features

  • High reliability at high current stress.
  • Self-healing properties.
  • Flame retardant plastic case and epoxy resin.
  • Low losses, high dv / dt capability.
  • High moisture resistance.
  • High stability of capacitance and long life.
Specifications

Specifications

Operating Temperature -40°C~ +85°C
Rated Voltage 100V, 250V, 400V, 630V. 1000VDC
Capacitance Range 0.001 ~ 1 μF
Capacitance Tolerance ±5%
Insulation Resistance C≦0.33μf ; IR≥50000MOhm
C>0.33μF ; IR≥15000MOhm
Dissipation Factor 0.1% max. at 1KHz, 20°C
Dielectric Strength 160% of rated voltage for 5 sec.

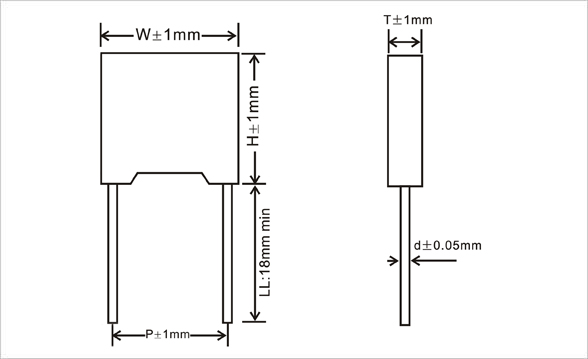

Drawing

Drawing

JFMM- Mini Box Metallized Polypropylene Film Capacitors
JFMM- 5mm and 7.5mm Mini Box Metallized Polypropylene Film Capacitor
