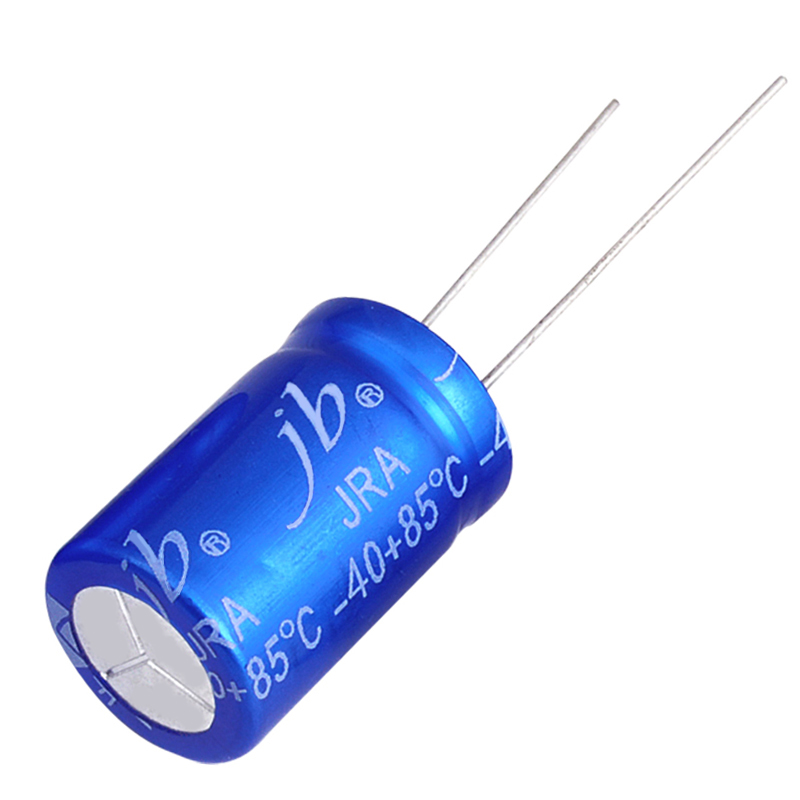

JRA – 2000H at 85°C, Radial Aluminum Electrolytic Capacitors, Miniature Series

The JRA series by jb Capacitors offers miniature radial aluminum electrolytic capacitors rated for 2,000 hours at 85°C. Designed for compact electronic assemblies, these capacitors deliver high ripple current handling and stable performance.

Their small size and RoHS compliance make them a reliable choice for general-purpose applications and cost-efficient circuit designs requiring long-term stability and dependable power filtering.

Description

Features

  • Load life of 2000 hours at 85°C
  • High ripple current
  • Miniature Series
  • RoHS Directive Compliant
Specifications

Specifications

Items Performance Characteristics
Operating Temperature Range (°C) -40℃~+85℃
Capacitance Tolerance (25°C, 120Hz) ±20%
Leakage Current (μA) 0.03cv or 4 whichever is greater(25°C, after 1 minute)
C: Nominal Capacitance (μF) V: Rated Voltage (V)
Drawing
