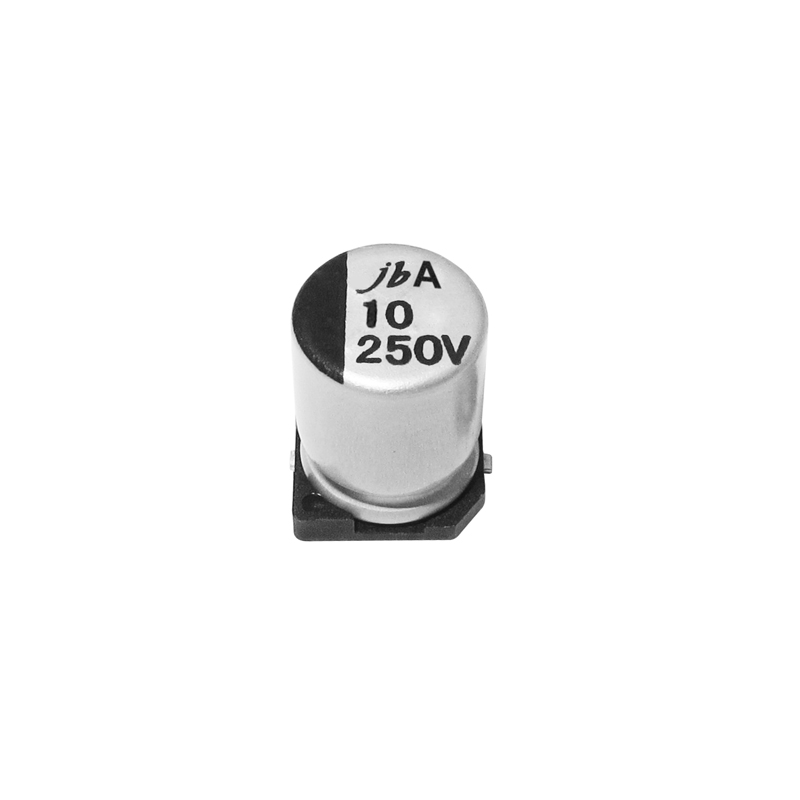

JCA – 5000H at 105°C, Long Life Assurance SMD Aluminum Electrolytic Capacitors

The JCA series from jb Capacitors offers long life assurance in a compact SMD package, designed for 5000 hours at +105°C. Ideal for high-density surface mounting, these aluminum electrolytic capacitors deliver high stability, excellent reliability, and support for reflow soldering. With compliance to RoHS directives, the JCA series is a trusted choice for demanding electronic designs requiring extended operational lifespan and consistent performance.

Description

Features

  • Life time 105℃ 5000hrs standard product
  • High stability and reliability
  • Reflow soldering is available
  • Available for high densify surface mounting
  • Comply with the RoHS directive.
Specifications

Specifications

Operating Temperature -40°C~ +105°C
Voltage Range 400V.DC
Capacitance Range 1 ~ 22μF
Capacitance Tolerance ±20% at 120Hz, 20°C
Leakage Current I ≤ 0.04CV (μA) + 100 (μA) after 5 minutes
